No Evidence Of Higgs Channel Dark Matter

The Results

The ATLAS experiment, using the full strength 13 TeV LHC collisions of Run-2 has looked for Higgs portal dark matter and reports in a new preprint that its search has come up empty.

The experimental ATLAS results were almost a perfect match to the predicted Standard Model backgrounds in its search using four different event selection criteria to make the result robust. All of the experimental results were within one sigma plus rounding to the nearest discrete measurable outcome.

This leaves no meaningful signal of a beyond the Standard Model Higgs portal dark matter decay, which ATLAS compared to several different Higgs portal dark matter models which it considered as benchmarks.

The exclusion is stronger than direct dark matter detection experiments for dark matter particle masses of under 2 GeV for the dark matter model it examined.

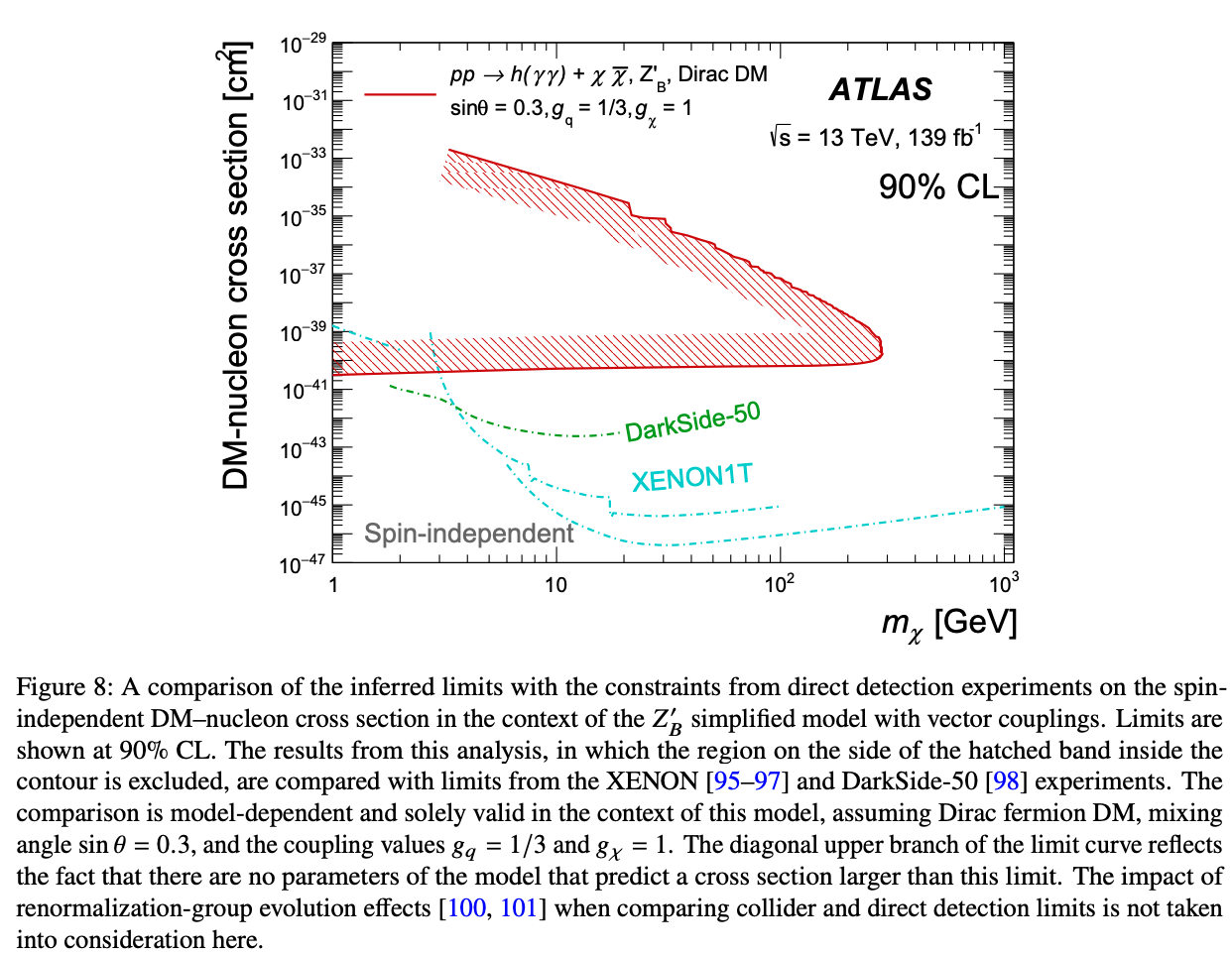

Additionally, the results for the 𝑍'_B model are interpreted in terms of 90% CL limits on the DM–nucleon scattering cross section, as a function of the DM particle mass, for a spin-independent scenario. For a DM mass lower than 2 GeV, the constraint with couplings sin 𝜃 = 0.3, 𝑔_𝑞 = 1/3, and 𝑔_𝜒 = 1 placed on the DM–nucleon cross section is more stringent than limits from direct detection experiments at low DM mass, showing the complementarity between the several approaches trying to unveil the microscopic nature of DM.

As decisively as this study ruled out Higgs portal dark matter, this analysis is actually generous in favor of the possibility of Higgs portal dark matter.

If there really was Higgs portal dark matter, it would significantly throw off the percentage of all Higgs boson decays which were to Standard Model predicted decay modes as well, which isn't analyzed in this paper, but which is also not observed in the manner that this kind of tweak to the Standard Model would cause.

The Paper

The paper and its abstract are as follows:

A search for dark-matter particles in events with large missing transverse momentum and a Higgs boson candidate decaying into two photons is reported. The search uses 139 fb−1 of proton-proton collision data collected at s√=13 TeV with the ATLAS detector at the CERN LHC between 2015 and 2018. No significant excess of events over the Standard Model predictions is observed. The results are interpreted by extracting limits on three simplified models that include either vector or pseudoscalar mediators and predict a final state with a pair of dark-matter candidates and a Higgs boson decaying into two photons.

ATLAS Collaboration, "Search for dark matter in events with missing transverse momentum and a Higgs boson decaying into two photons in pp collisions at s√=13 TeV with the ATLAS detector" arXiv 2104.13240 (April 27, 2021).

Implications For Dark Matter Particle Searches

This study doesn't entirely rule out Higgs portal dark matter. Higgs portal dark matter could conceivably appear only in decays that don't involve photon pairs, if you twist your model to have that property. But it continues the relentless march of the LHC to rule out the existence of new particles of several TeV mass or less that could be dark matter candidates on multiple fronts.

Between the LHC and direct dark matter detection experiments, there are fewer and fewer places in the dark matter particle parameter space for a dark matter particle candidate that has any interactions whatsoever with Standard Model matter could be hiding.

Yet truly "sterile" dark matter particle candidates that interact with ordinary matter only via gravity, whether or not it has dark sector self-interactions, are very hard to square with the observed tight alignment between inferred dark matter halo distributions and ordinary matter (as previous posts at this blog have explained).

Furthermore, as previously posts at this blog have explained, dark matter candidates with more than several TeV of mass that the LHC can search for are also disfavored.

These candidates are too "cold" (i.e. these particles would have too low of a mean velocity) to fit the astronomy observations of galaxy dynamics and large scale structure if it was produced as a thermal relic (for which dark matter mean velocity and dark matter particle mass are related via a viral theorem).

But conventional lambda CDM cosmology demands a nearly constant amount of dark matter for almost the entire history of the universe (and observations place significant model independent bounds on variations in the amount of inferred dark matter in the universe), even if dark matter particles are not produced as thermal relics. So, any dark matter candidate that is not a thermal relic has to be produced in a non-thermal process in equilibrium in the current universe that would have to exist. There are really no plausible candidates for such a process that aren't ruled out observationally, however.

What Was ATLAS Looking For And Why?

As discussed below, one promising kind of dark matter candidate is Higgs portal dark matter. If Higgs boson portal dark matter exists, there should be decays of pairs of photons and something else which should produce (for the reasons discussed below) a very clean experimental signal.

Some kinds of Higgs portal dark matter models also involve decays from beyond the Standard Model electrically neutral bosons, such an additional heavy Z boson called a Z' predicting in a variety of beyond the Standard Model theories, or pseudo-scalar Higgs boson called the H_A predicted in "two Higgs doublet  model" (2HDM) extensions of the Standard Model predicted also predicted in a variety of Standard Model theories including essentially all supersymmetry theories.

By looking for missing energy (which is a typical way to search for new particles, as discussed below) in diphoton decays of Higgs bosons, the Large Hadron Collider (LHC) can search for Higgs portal dark matter, and the ATLAS Collaboration at the LHC did just that.

Why Search For Higgs Portal Dark Matter Candidates?

One class of dark matter candidates which has attracted a great deal of attention is "Higgs portal" dark matter candidates. These dark matter candidates would not have electromagnetic charge, strong force color charge, or weak force interactions, and hence would be nearly "sterile" dark matter candidates, but would couple to the Higgs boson like all other massive Standard Model particles which would provide a process by which these dark matter particles are created and would allow for very slight interactions (indirectly through virtual Higgs bosons loops) with ordinary matter. These are properties that generically we would like dark matter candidates to have, and this doesn't preclude the interaction of dark matter particles with each other via some force that only interacts with particles in the dark sector.

Thus, it could be "self-interacting dark matter" with a means of formation shortly after the Big Bang and slight interaction with baryonic matter via a virtual Higgs boson interaction, which are properties that would all be good for a particle dark matter candidate that can come close to reproducing reality to have.

Another desirable feature of Higgs portal dark matter candidates is that if they exist, they would be observable at sufficiently powerful particle colliders like the LHC.

Searches For Beyond The Standard Model "Invisible" Decay Products

The LHC has searched at the highest available energies for the production of particles that its detectors aren't able to see (e.g. because the decay products are long lived enough to exit the collider before being detected and/or not electrically charged) in a wide variety of processes.

This is done by looking for "missing traverse momentum", i.e. by looking at a decay of a known Standard Model particle, adding up the mass-energy of the observed decay products, adding to the detected mass-energy the predicted mass-energy from neutrino decays which are "invisible" to the detectors in a collider because they are electrically neutral and long lived, and adjusting the result for the fact that the detectors are known to miss a well quantified percentage of detectable particles produced in ordinary decays because the detectors aren't 100% perfect.

Missing traverse momentum is a generic signal of long lived, electrically neutral beyond the Standard Model particles, including dark matter candidates, so LHC experiments are constantly vigilant for statistically significant amounts of missing traverse momentum produced from its collisions.

Why Look At High Energy Photon Pairs?

One of the less common decays of the Higgs boson, predicted by the Standard Model, is  a decay to a pair of photons. It is an attractive one to study, and was one of the Higgs boson decays that was central to the discovery of the Higgs boson in 2012 in the first place even though other kinds of Higgs boson decays are much more common because it produces a very "clean" signal.

The signal is "clean" because there are very few "background" processes that generate photon pairs. The main other Standard Model fundamental or composite particles that do are Z boson at about 91.19 GeV and the neutral pion at about 135 MeV.  The frequency and character of the Standard Model predicted decays are very well characterized and understood. Putting a floor on the energy of the photon pairs considered in one's event selection easily screens out these decays.

The Standard Model Higgs boson has a mass of about 125 GeV, all of which is translated into photon energy in its Standard Model decay into photons pairs, so focusing in on decays producing photon pairs with combined energies of 120 GeV to 130 GeV screens out all of the non-Higgs decay based background as this study did.
